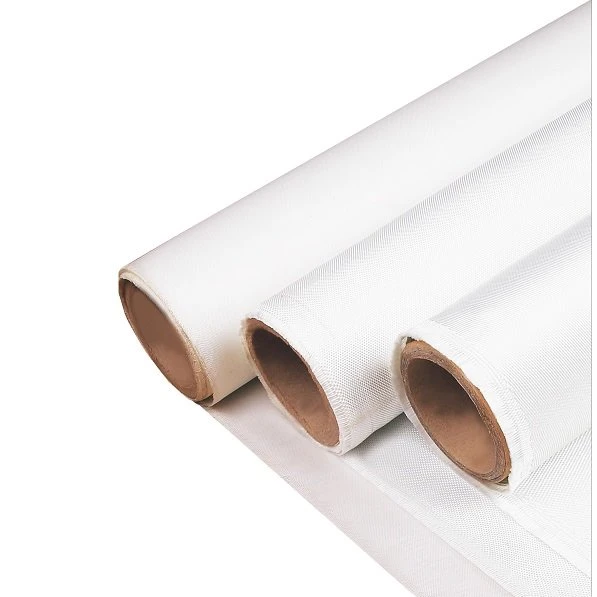

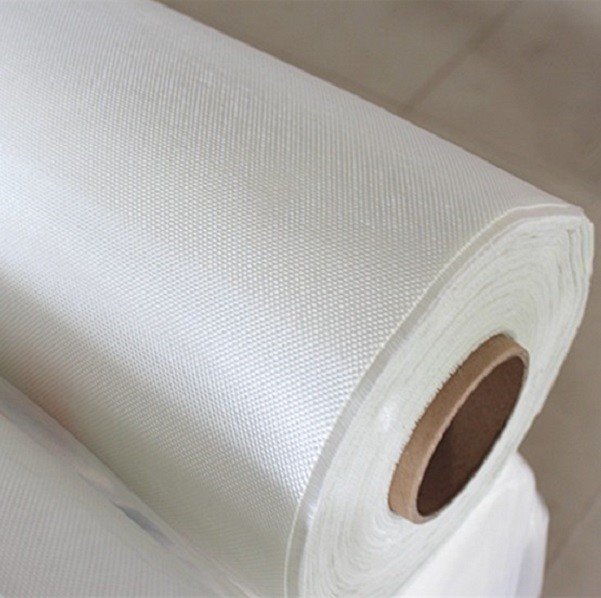

Fiberglass fabric is made of continuous fiberglass yarns. It had excellent electric insulating, corrosion resistance, high temperature resistance and good resin impregnation. The surface is smoother than texturized fiberglass fabric. It is widely used in the thermal insulation, heat protection, fireproofing, economize energy sources, labor protection and can be used as base materials for coating.After dewaxing treatment, it can be compatible with polyester, epoxy and vinyles ter resins, and is widely used in mica tape,fiberglass tape,aircraft industry, ship industry, chemical industry, military industry and sports goods, etc.

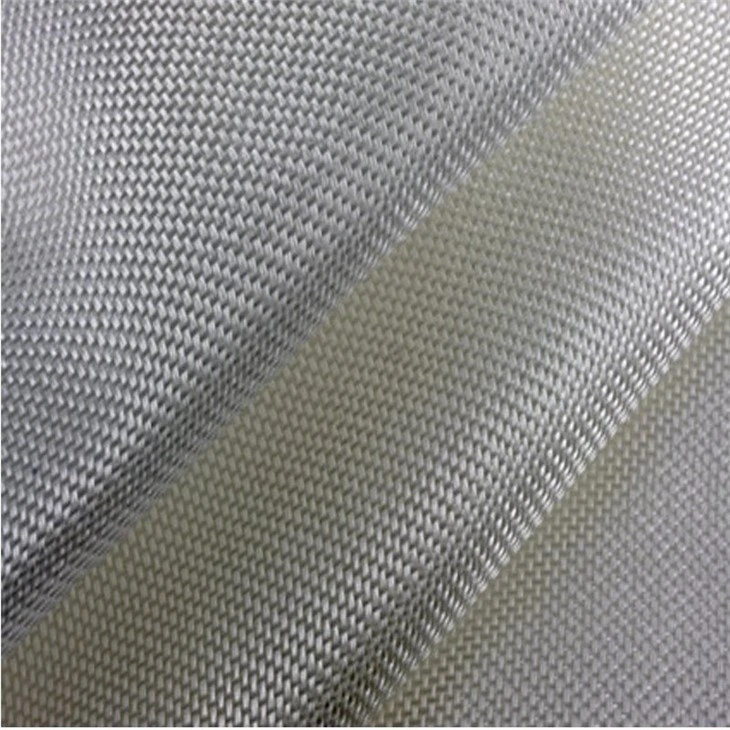

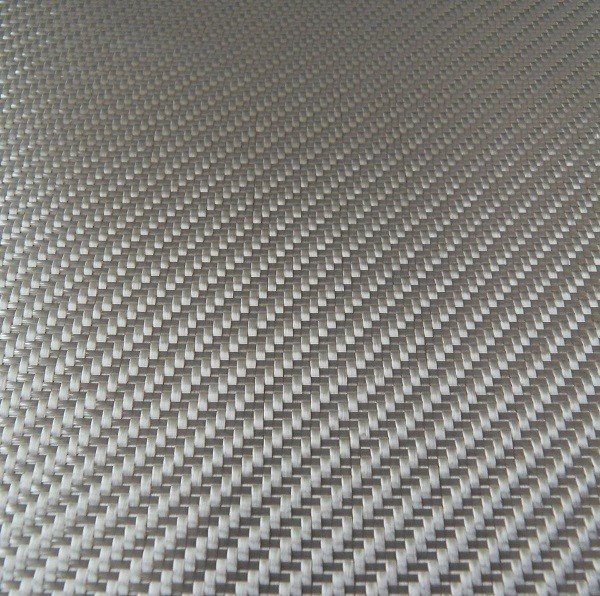

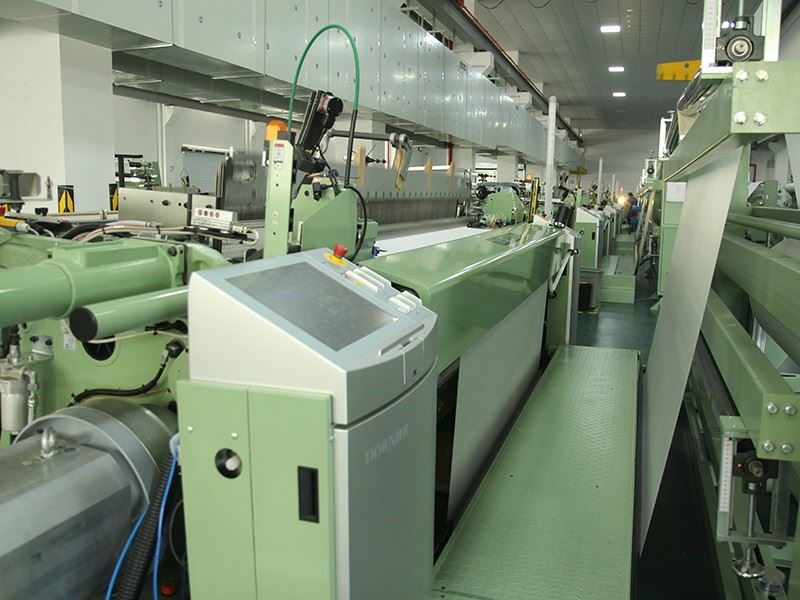

The product weaving by different single yarn on air-jet loom, yarn types including:D450, E225, E110, G150, G75 and G67, G37, etc. According to customers’ different requirements, we can produce plain weave, twill weave, satin weave etc., with different weave, covering the weft density rang of 5-100/inch, the maximum width is 330cm.
Product range:
Width(cm) | Warp yarn | Weft yarn | Weight(g/m2) | Thickness(mm) | Weave | Temperature |
50-330 | D450 E225 E110 G150 G75 G67 G37 …….. | D450 E225 E110 G150 G75 G67 G37 …….. | 50-450 | 0.05-0.40 | Plain Twill Satin Etc. | 550℃/1000°F |
Partial product specifications:
Type(ASTM) | Warp yarn | Weft yarn | Weight(g/m2) | Thickness(mm) | Weave | Temperature |
EW048(1080) | EC D450 1/0 | EC D450 1/0 | 48 | 0.051 | Plain | 550℃/1000°F |
EW106(2116) | EC E225 1/0 | EC E225 1/0 | 106 | 0.102 | Plain | 550℃/1000°F |
EW165(1506) | EC E110 1/0 | EC E110 1/0 | 166 | 0.137 | Plain | 550℃/1000°F |
EW205(7628) | EC G75 1/0 | EC G75 1/0 | 205 | 0.195 | Plain | 550℃/1000°F |
EW301(7581) | EC G75 1/0 | EC G75 1/0 | 301 | 0.23 | Plain | 550℃/1000°F |
EW430(3732) | EC G37 1/0 | EC G37 1/0 | 430 | 0.39 | Plain | 550℃/1000°F |
….. | ….. | …. | ….. | …. | …. | 550℃/1000°F |
Main applications:
l Thermal insulation
l Heat protection
l Base materials for coating, impregnating and laminating

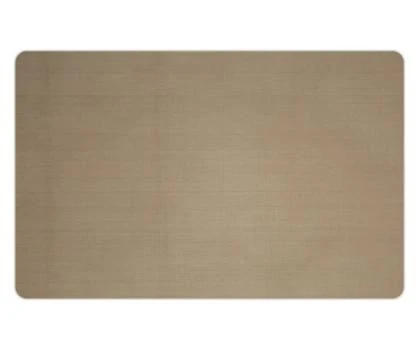

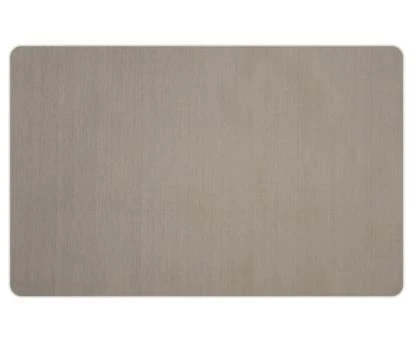

PTFE release fiberglass fabric

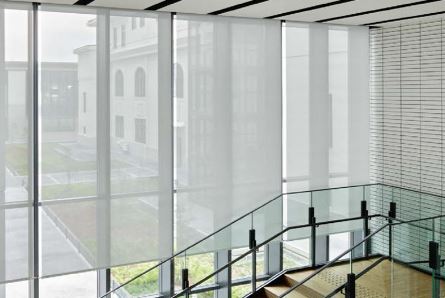

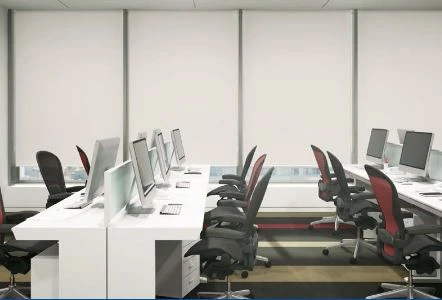

PTFE fiberglass curtain
Kitchen applications:
Industrial applications:
