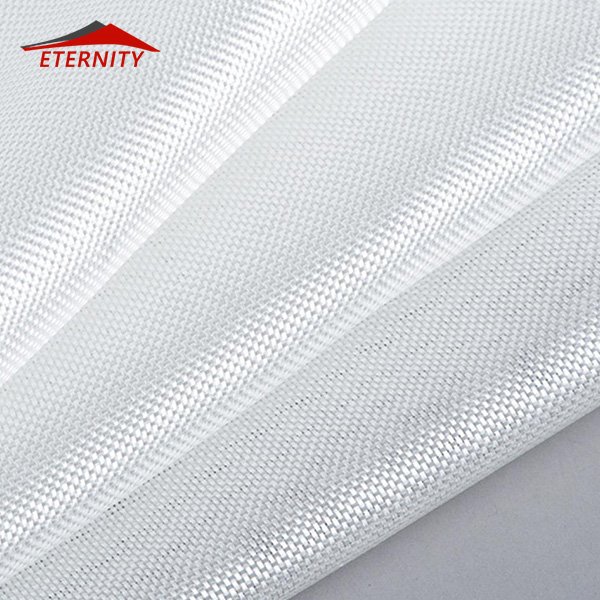

Glass Fiberglass cloth is woven in various configurations from five basic weave patterns, called plain, leno, satin, twill and crowfoot. Fiberglass cloth is a strong and durable woven textile used mainly for PTFE coating, reinforcement for copper clad laminates, composites, electrical insulation, mineral wool lamination and Filtration markets and so on.Light-weight cloths also provide a smooth finish and are ideal for producing a waterproof layer over wood or other surfaces, such as is needed in boat repair and other marine applications.The gram is from 25g/㎡-2000g/㎡. The widths is up to 5.2m. Our machines’ brands are Dornier, Toyota, our capacity is around 1.8 million square metre per month. Fibreglass E-glass cloth is considered the industry standard and provides an excellent balance between cost and performance. Welcome to develop new products with us together. The follow items are our main products.
US | oz/yd2 | Warp | Weft | Warp | Weft | Blinding |
106 | 0.74 | ECD 900 1/0 | ECD 900 1/0 | 55.88 | 55.88 | Plain |
1080 | 1.45 | ECD 450 1/0 | ECD 450 1/0 | 60.2 | 46.99 | Plain |
1280 | 1.61 | ECD 450 1/0 | ECD 450 1/0 | 60.2 | 59.18 | Plain |
2113 | 2.37 | ECE225 1/0 | ECD 450 1/0 | 60.2 | 56.123 | Plain |
2125 | 2.62 | ECE 225 1/0 | ECG 150 1/0 | 40.64 | 38.1 | Plain |
1674 | 2.92 | ECG 150 1/0 | ECG 150 1/0 | 40.64 | 31.75 | Plain |
2116 | 3.16 | ECE225 1/0 | ECE225 1/0 | 60.2 | 57.91 | Plain |
116 | 3.18 | ECD450 1/2 | ECD450 1/2 | 60.2 | 57.91 | Plain |
1165 | 3.69 | ECD450 1/2 | ECD150 1/0 | 60.2 | 52.07 | Plain |
2165 | 3.73 | ECE 225 1/0 | ECG 150 1/0 | 60.2 | 52.07 | Plain |
128 | 5.9 | ECD 225 1/3 | ECD 225 1/3 | 42.67 | 30.48 | Plain |
7581 | 8.79 | ECG 75 1/0 | ECG 75 1/0 | 55.88 | 54.61 | 8 Sh Satin |
7630 | 4.81 | ECG 75 1/0 | ECG 75 1/0 | 30.48 | 29.21 | Plain |
7628 | 6.07 | ECG 75 1/0 | ECG 75 1/0 | 43.69 | 30.48 | Plain |
7642 | 6.9 | ECG 75 1/0 | ECG 37 1/0 B | 43.69 | 20.32 | Plain |
7637 | 6.9 | ECG 75 /0 | ECG 37 1/0 | 43.69 | 20.83 | Plain |
1142 | 8.55 | ECG 37 1/0 | ECG 37 1/0 | 32 | 21.08 | Plain |
141 | 8.7 | ECG75 1/2 | ECG 75 1/2 | 32 | 21.08 | Plain |
1590 | 9.44 | ECG 37 1/3 | ECG 37 1/5 | 10.16 | 5.08 | Leno |
440 | 12.24 | ECG 37 1/0 | ECG 37 1/0 | 47.24 | 27.94 | Crowfoot |
1564 | 12.3 | ECG 37 1/2 | ECG 37 1/2 | 18.8 | 17.78 | Plain |
1589 | 12.39 | ECG 37 1/3 | ECG 37 1/3 | 12.7 | 11.94 | Plain |
