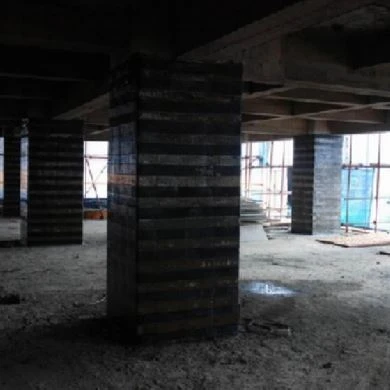

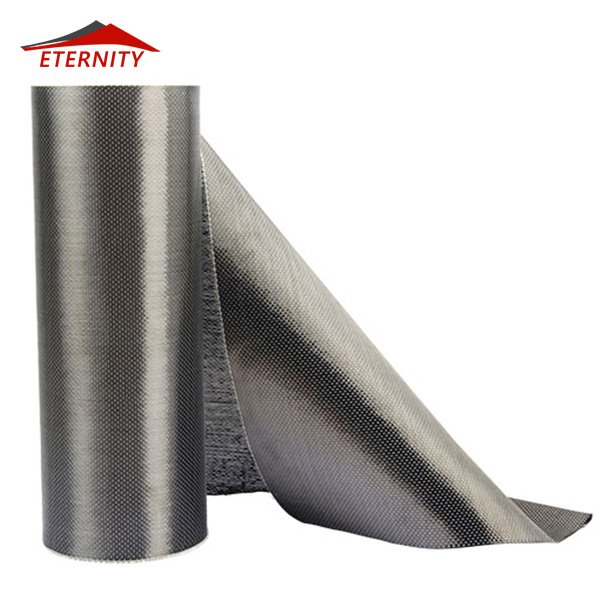

The unidirectional Carbon Fibre fabric is non-woven, so it adds strength in one direction. This fabric is excellent for strengthening, consequently, it is suitable for marine and constructional application such as boat hulls and reinforced concrete structures. With this style of fabric, there are no gaps between fibers, and those fibers lay flat. There is no cross-section weave that divides the fiber strength in half with another direction.
Specification:
◆ Weight:300g/sqm /200g/sqm
◆ Thickness:0.167mm/0.111mm
◆ Density:1.8g/cm³
◆ Packing:100 meters/roll
◆ Width:100mm,200mm,300mm,500mm or to be customized.
Features:
◆Flexible
◆ High Strength
◆ High Modulus
◆ Easy To Install
◆ Long Shelf Life
◆ Light Self Weight
◆ High Toughness
◆ Anti High Temperature
◆ Environmental-Friendly

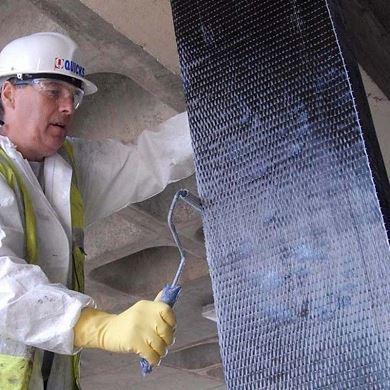

◆ Carbon Fiber Wrap Used For Shear Strengthening, Confinement Strengthening, Flexural Strengthening
Unidirectional reinforcement is ideal for applications where front-to-back strength is most important. For example, long, tubular structures that move only in a forward-and-reverse direction—such as rockets, airplanes, and boats—often use unidirectional carbon fiber as their reinforcement. You will find that most carbon fiber tubes used in frames—like back packs, bicycles—use unidirectional carbon fiber for its light weight and superior stiffness.
 |  |
The light weight and stiffness of unidirectional carbon fiber is also being utilized in wide turbine blades. The increased stiffness and lighter weight allows for longer, thinner blades. The added length results in larger sweep areas, and the thinner, lighter blades are more sensitive to air movement, both of which provide a greater energy output.
Eternity is committed to ensuring that every roll of fabric we supply is first class quality and manufactured to the highest standard, so that you can expect the same properties and handling characteristics every time you order.
